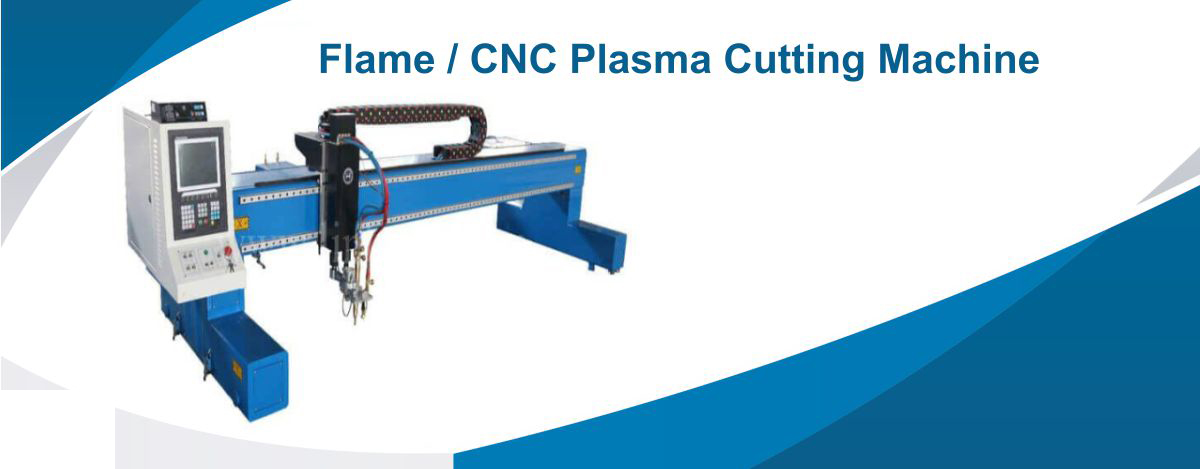

Gantry Type Flame/CNC Plasma Cutting Machine
Technical Chart
| Model | PSL 3015 | PSL 4015 | PSL 6015 | PSL 4020 | PSL 6020 |
|---|---|---|---|---|---|
| Track Width (mm) | 1500 | 1500 | 1500 | 2000 | 2000 |
| Track Length (mm) | 3000 | 4000 | 6000 | 4000 | 6000 |
| Product Name | Gantry Type Flame/CNC Plasma Cutting Machine |
|---|---|
| Laser Type | Fiber Laser Source IPG |
| Laser Wavelength | 1070-1080nm |
| XYZ axis working length | 3000mm/1500mm/120mm |
| Cutting Thickness | MS 0.5 - 12mm (Depend on Materials) |
| Traverse Speed | 100M/min |
| Maximum acceleration | 0.5G |
| Total Machine Weight | 5000kg Approx. |
| Power Demand | 380V 50Hz/60Hz |
| Dimension (L x W x H) | 4600mm x 3600mm x 1500mm |
